Statechart

Statechart editor

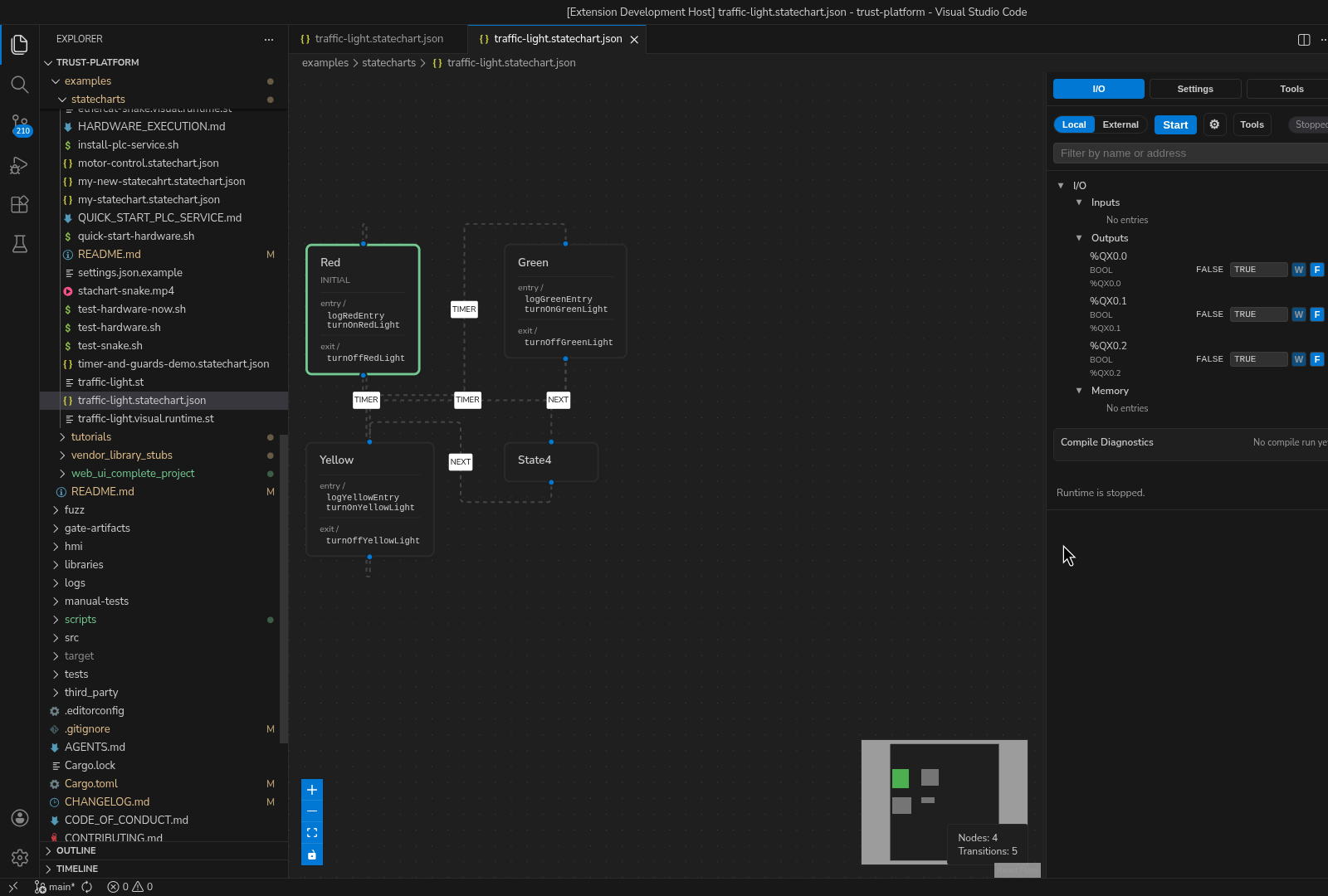

Figure: A statechart editor session with named states and transitions visible on the canvas.

What it gives you

  • state-centric modeling
  • action/event style authoring
  • the same runtime, debug, and test surfaces as the rest of truST

Five-step quickstart

  1. Open examples/statecharts/traffic-light.statechart.json.
  2. Let truST open the visual editor automatically.
  3. Inspect states and transitions first before editing actions.
  4. Save and review the companion ST/output behavior.
  5. Run the project and drive events or inputs through the runtime/debug surfaces.

Best for

  • operating modes
  • fault handling and recovery flows
  • clear state ownership across larger behaviors

When not to use Statechart

  • when the logic is mostly rung logic or I/O seal-ins
  • when the sequence is best represented as SFC steps and transitions
  • when a simple ST CASE is easier to maintain than a graph

Common mistakes

  • adding too many side effects in transitions instead of using state entry/exit cleanly
  • treating state names as documentation only instead of execution boundaries
  • skipping runtime validation after visual edits

Example folder

  • examples/statecharts
