HMI And Web UI

Operate and monitor a runtime-hosted HMI from the browser.

HMI Workflow

Browser HMI overview

Figure: The runtime-hosted HMI dashboard. Look here first for connection state, alarms, live values, and operator status.

HMI Directory Workflow

This guide covers the production HMI descriptor workflow using the hmi/ directory, including process pages (plant.svg / plant-minimal.svg) and LM tool invocation patterns.

1. Initialize hmi/

Generate a deterministic descriptor scaffold from PLC sources:

trust-runtime hmi init --root <project-root>

VS Code command alternative: - Structured Text: Initialize HMI Descriptor

Expected output directory shape:

hmi/
  _config.toml
  overview.toml
  trends.toml      # optional when enough numeric points exist
  alarms.toml      # optional when alarm-worthy points exist

2. Descriptor layout basics

hmi/_config.toml controls theme, refresh, and write policy. Page files (hmi/*.toml) define page metadata and widgets.

Minimal write policy example (default-safe):

[write]
enabled = false
default_role = "viewer"
allowlist = []

Controlled write example:

[write]
enabled = true
default_role = "operator"
allowlist = [
  "PROGRAM PumpStation.PumpSpeed",
  "GLOBAL Control.StartButton",
]

Write guardrails remain strict: - writes are disabled unless explicitly enabled - target paths must be allowlisted - runtime authz still applies per request

3. Process pages (kind = "process")

Use process pages when binding live values to SVG elements.

Example hmi/plant.toml:

title = "Plant"
kind = "process"
svg = "plant.svg"

[[bind]]
selector = "#tank_level"
attribute = "height"
source = "PROGRAM PumpStation.Level"
format = "%.0f"
scale = { in_min = 0.0, in_max = 100.0, out_min = 20.0, out_max = 180.0 }

[[bind]]
selector = "#pump_state"
attribute = "class"
source = "PROGRAM PumpStation.Run"
map = { "true" = "running", "false" = "stopped" }

plant.svg and plant-minimal.svg templates

The repository includes production-ready templates: - hmi/plant.svg - hmi/plant-minimal.svg - hmi/plant.bindings.example.toml

Typical usage: 1. Start from hmi/plant-minimal.svg for compact dashboards or low-density screens. 2. Start from hmi/plant.svg for a richer process board with more symbol anchors. 3. Copy selector IDs into [[bind]] entries in your page TOML. 4. Validate with trust_hmi_validate (or runtime integration tests) before enabling writes.

You can embed reusable symbols from hmi/pid-symbols/:

<image href="pid-symbols/PP001A.svg" x="500" y="450" width="96" height="96"/>

4. LM tool invocation patterns

Use deterministic tool order instead of direct free-form file rewrites.

Scaffold-first flow

  1. trust_hmi_init
  2. trust_hmi_get_bindings
  3. trust_hmi_get_layout
  4. trust_hmi_apply_patch with dry_run=true
  5. trust_hmi_apply_patch with dry_run=false

Intent-to-evidence flow

  1. trust_hmi_plan_intent
  2. trust_hmi_trace_capture
  3. trust_hmi_generate_candidates
  4. trust_hmi_validate (optionally with prune/retention args)
  5. trust_hmi_preview_snapshot
  6. trust_hmi_run_journey
  7. trust_hmi_explain_widget

If validation or journey steps fail, iterate and re-run before accepting changes.

5. Runtime + panel verification

Runtime verification:

cargo test -p trust-runtime --test hmi_readonly_integration

VS Code extension verification:

cd editors/vscode && npm run lint
cd editors/vscode && npm run compile
cd editors/vscode && ST_LSP_TEST_SERVER=<path>/trust-lsp npm test

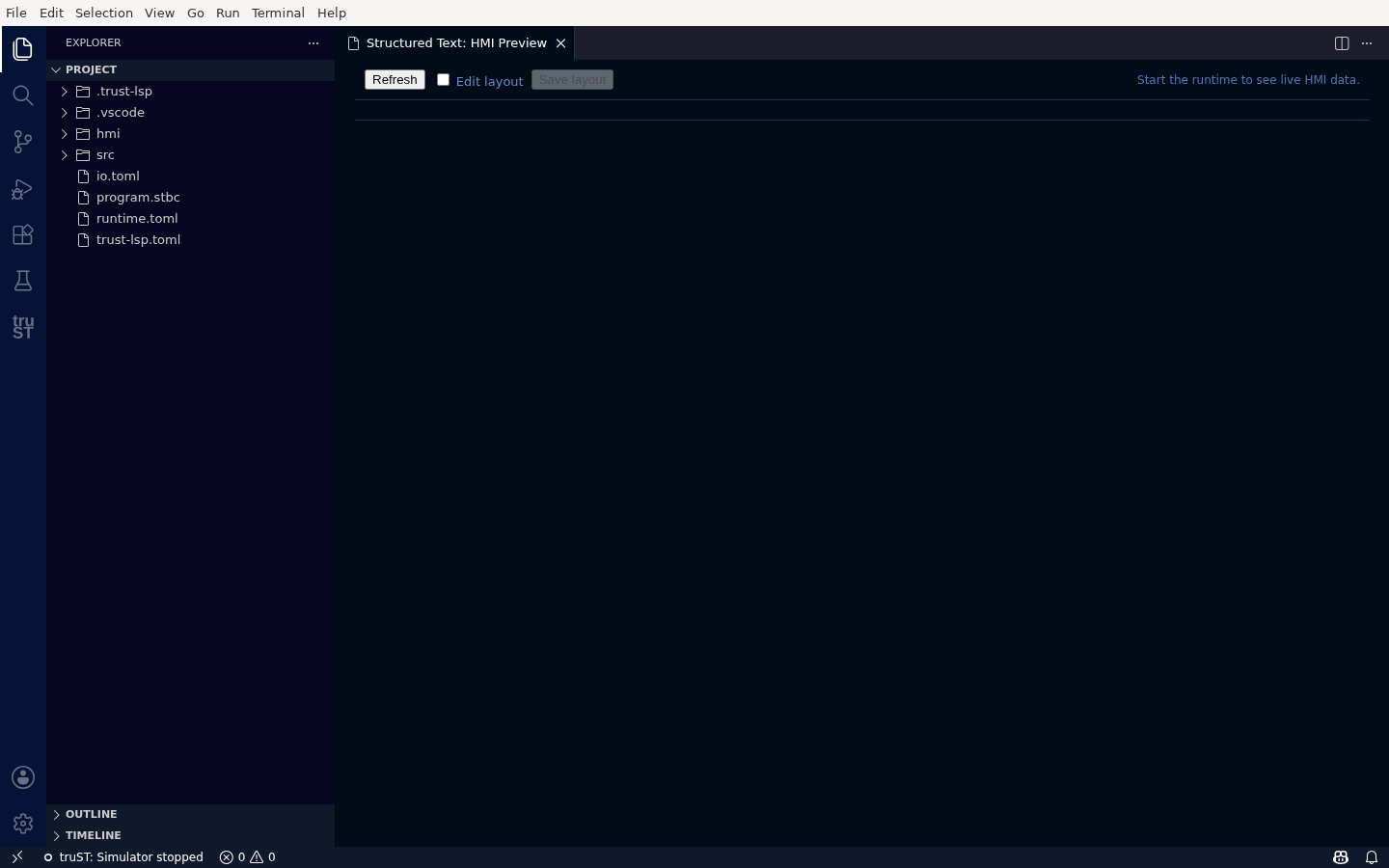

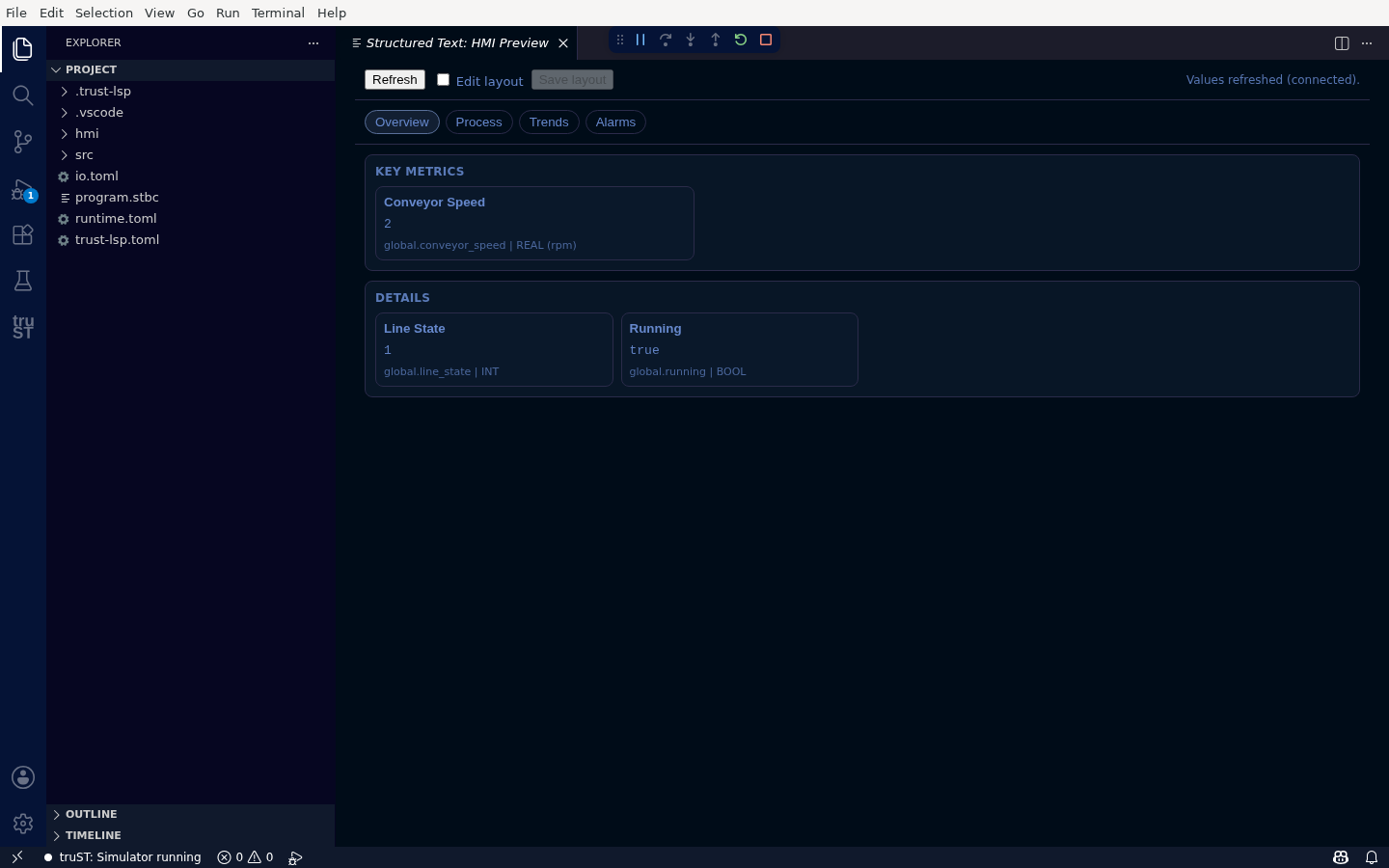

Open preview: - Structured Text: Open HMI Preview

Live descriptor refresh is supported for hmi/*.toml and hmi/*.svg updates.
